Installing a wall-mounted range hood properly matters for more than appearance. A correct installation helps remove smoke, grease, and cooking odors efficiently, reduces buildup on cabinets and walls, and improves kitchen safety. If the hood is mounted at the wrong height, vented incorrectly, or wired improperly, even a good range hood fan may underperform.
This guide explains how to install a wall-mounted range hood step by step, what to prepare before you begin, and which mistakes to avoid.
Before installing a range hood, confirm five things first:
Your hood should generally match the width of your cooktop. For example, a 30-inch stove usually pairs with a 30-inch hood. In some kitchens, choosing a slightly wider hood improves smoke capture.
Always follow the manufacturer’s installation manual, because the correct height varies by model and power level. In general, wall-mounted hoods are installed high enough to allow safe cooking access but low enough to capture smoke effectively. If the hood sits too high, performance drops. If it sits too low, it may create a safety or usability problem.
Check whether your unit is configured for:
Ducted installation using a range hood vent
Ductless/recirculating installation using a range hood filter
A ducted setup usually removes smoke and odors more effectively because air is discharged outside. A ductless setup is often easier where exterior venting is not possible, but it depends heavily on filter quality and maintenance.
A wall-mounted hood must attach securely to studs or to a proper support structure. Do not rely only on drywall anchors unless the manufacturer explicitly allows it and the wall condition is suitable.
Many hoods require a dedicated power connection. Some plug in, while others are hardwired. Electrical work should comply with local code. If you are not qualified to handle wiring safely, use a licensed electrician.
The exact list depends on your model, but most installations require:
Tape measure
Level
Pencil or marker
Stud finder
Drill and drill bits
Screwdriver
Mounting screws and brackets
Duct pipe and connectors for the range hood vent
Aluminum foil tape for duct joints
Wire connectors if hardwiring is required
Safety gloves and eye protection
Ladder or step stool
If your model includes a decorative chimney or range hood cover, keep all included mounting parts organized before you start.
Start with the product manual, not with drilling.
Different wall-mounted hoods vary in:
mounting bracket design
duct outlet position
chimney extension structure
wiring method
required clearance above the cooktop
recirculating kit requirements
Even when two hoods look similar, their installation details may differ. The manual should always override general advice.
Measure the center of your cooktop and draw a vertical centerline on the wall. This line helps align the range hood, chimney, and vent path.
Next, mark the recommended mounting height above the cooking surface according to the manual. Use a level to make sure your guide lines are straight. This stage is important because a small alignment error becomes very visible once the hood is mounted.
A clean, centered installation also helps the range hood fan capture rising smoke more evenly.
Use a stud finder to locate studs behind the wall. Mark them clearly.
Wall-mounted hoods are heavier than many homeowners expect, especially stainless steel models or units with glass canopies and chimney sections. If the mounting holes do not line up with studs, review the manufacturer’s instructions for acceptable reinforcement methods.
This is also the stage to confirm whether the wall can support the hood body plus the upper range hood cover or chimney assembly.
If you are installing a ducted model, plan the range hood vent route before mounting the unit.
A good vent path should be:
as short as practical
as straight as possible
properly sealed at joints
sized according to the hood specification
Too many bends, long duct runs, or undersized ductwork can reduce airflow and increase noise. That means the range hood fan has to work harder while delivering worse results.
If possible, avoid unnecessary elbows. Each turn can reduce airflow efficiency. A straighter route usually performs better than a complicated one, even with the same motor.
If you are using a ductless setup, confirm that the correct range hood filter configuration is installed, especially if charcoal filters are required for recirculation.
Many wall-mounted models use a bracket system. Attach the bracket to the wall using the mounting points specified in the manual.
Before tightening fully:
recheck center alignment
confirm bracket height
make sure the bracket is level
A crooked bracket almost always results in a crooked hood. This affects both appearance and chimney fit.
Depending on your kitchen layout, you may need to cut openings for:
rear wall venting
top venting through the ceiling
electrical cable access
Measure twice before cutting. An opening in the wrong location can create visible gaps behind the range hood cover or make duct connection difficult.
If the installation involves new duct routing through cabinets, drywall, or exterior walls, accuracy matters. Poorly positioned openings can increase noise, reduce airflow, or complicate future maintenance.
With help from another person, lift the hood body into place and secure it according to the manufacturer’s instructions.
Do not try to mount a large wall hood alone unless the model is specifically lightweight and easy to handle. The combination of awkward shape, metal edges, and overhead positioning increases the risk of damage or injury.
Once mounted, check:
side-to-side level
front alignment
tight fastening
clearance above the cooktop
At this stage, the main range hood housing should sit securely and evenly against the wall.
Attach the duct to the hood outlet and seal the joints with foil tape approved for ductwork. Do not use standard cloth duct tape, because it does not hold up well in this application.
When connecting the range hood vent, make sure:
the duct fits the outlet size correctly
joints are tight
airflow direction is unobstructed
any backdraft damper can open and close freely
A poorly sealed vent system can leak grease-laden air into the wall or ceiling cavity, which reduces performance and may create maintenance issues over time.
Turn off power at the breaker before any electrical work begins.
Then connect the hood according to the product wiring diagram. This may involve:
plugging into a nearby outlet
hardwiring the unit to the home electrical system
If hardwiring is required and you are uncertain about code, grounding, or circuit load, do not guess. Electrical mistakes create real safety risks. A qualified electrician is the right choice in that situation.
Most wall-mounted models include a decorative chimney or adjustable range hood cover that conceals the duct and wiring.
Install the lower and upper sections as directed, making sure:
the pieces overlap correctly
the finish is not scratched during assembly
the upper section is securely fixed
access panels remain usable if required
A clean chimney installation improves appearance, but it also protects the visible section of the vent path.
Insert the factory-supplied range hood filter before testing the unit.
Depending on the model, this may include:
aluminum mesh filters for grease capture
baffle filters for higher-volume cooking
charcoal filters for recirculating setups
Do not operate the hood long term without the proper filter set in place. Filters protect the motor area from grease buildup and are essential for normal performance.
Turn the power back on and test the range hood fan at each speed.
Check for:
normal airflow
unusual vibration
rattling duct sections
lighting function
effective smoke capture
proper exhaust discharge outside for ducted models
If the fan sounds louder than expected, inspect the duct path, mounting tightness, and filter placement. Excessive noise often points to airflow restriction, loose parts, or misalignment.
A wall-mounted range hood can look correct but still work poorly if these mistakes happen during installation.
This is one of the most common issues. Smoke capture gets weaker as the distance from the cooktop increases.
A reducer or narrow duct may seem convenient, but it can restrict airflow and reduce efficiency.
A complicated range hood vent route increases static pressure and can make the hood noisier and less effective.
Heavy hoods need secure support. Poor anchoring can create alignment problems or long-term safety concerns.
A clogged or missing range hood filter reduces performance quickly, especially on recirculating models.
If you are building a custom hood surround, make sure the range hood insert matches the enclosure dimensions, ventilation design, and support structure. Not every insert fits every custom cover.
Some buyers confuse a decorative wall hood with a range hood insert.

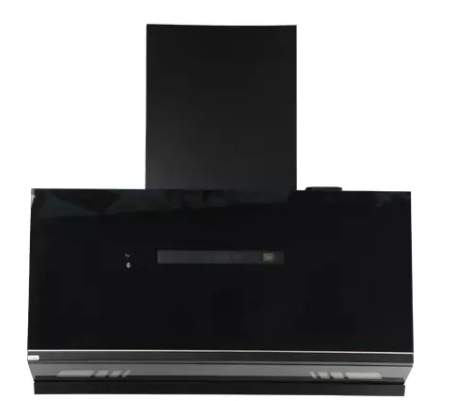

A wall-mounted hood is a complete visible appliance mounted directly to the wall. It usually includes the outer body, controls, fan system, and chimney section.
A range hood insert is the internal ventilation unit installed inside a custom hood enclosure or cabinet structure. It is common in custom kitchens where homeowners want a built-in look rather than an exposed stainless canopy.
If you are installing a standard wall-mounted unit, the process is different from installing a custom insert. Always verify which type you have before starting.
DIY installation may be reasonable for someone comfortable with measuring, mounting, and basic home improvement work. But professional help is the better option when:
new electrical wiring is needed
exterior wall venting must be cut
the hood is especially heavy
the wall support is uncertain
local building code requirements are unclear
you are installing a custom enclosure for a range hood insert
The cost of professional installation may be justified if it prevents venting errors, electrical hazards, or damage to cabinetry and finishes.
A properly installed hood still needs routine care.
Grease filters should be cleaned on a schedule that matches your cooking frequency. Heavier cooking usually means more frequent cleaning.
For ducted systems, inspect visible sections of the range hood vent for looseness, grease buildup, or damage.
Regular cleaning prevents grease film from building up on the range hood cover and control area.
If your system uses charcoal filters, replace them according to the product guidance. Unlike metal grease filters, these are often not washable.
To install a wall-mounted range hood properly, focus on the fundamentals: correct height, secure mounting, efficient vent routing, proper electrical connection, and the right filter setup. These details have a direct effect on airflow, noise, safety, and long-term reliability.
If you want the hood to do more than just look good, do not treat installation as a cosmetic task. A well-installed range hood fan helps your kitchen stay cleaner, reduces lingering odors, and supports better daily cooking comfort. When the job involves complex venting, custom cabinetry, or a range hood insert, professional installation is often the safer and more reliable choice.
